ISO18000‐6C/6B ID tag RFID card reader & writer Wiegand26/34 Long distance UHF card reader

Shenzhen Skynav Technology Co.,LTD

ISO18000‐6C/6B ID tag RFID card reader & writer Wiegand26/34 Long distance UHF card reader

Place of Origin : china

Brand Name : itec

Certification : CE, FCC, RHOS

Model Number : iTec-0702

MOQ : 1

Price : 175USD

Packaging Details : netural

Delivery Time : 3-7

Payment Terms : paypal , T/T

Supply Ability : 1million/year

Contact Now

RS485/ RS232 / Wiegand26 /34 / TCP/IP interface Long distance UHF card reader

ISO18000‐6C/6B ID tag RFID card reader & writer iTec-0702 Access control card reader in parking system

1. General Description

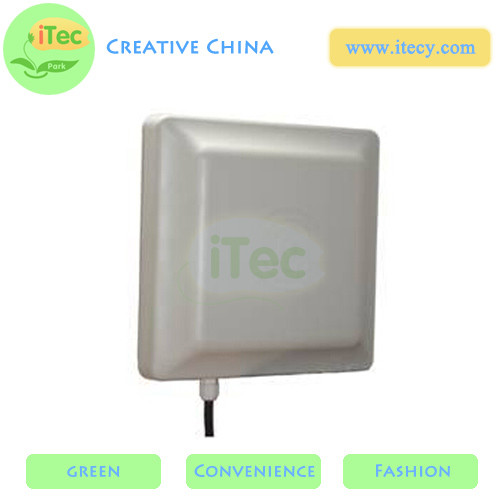

AD0702 is a High Performance UHF integrated reader for long range operation. Compact Reader with integrated 8dBi circular

polarized UHF Far Field antenna,.Based on proprietary efficient digital signal processing algorithm,the reader is capable of up

to 6m Read Range and 3m Write Range.

The reader operates in frequency range of 902MHz~928MHz design to read ISO18000‐6C and

ISO18000‐6B protocol ID Tag.

The reader can be widely applied in many RFID application systems such as logistics, access control,

and anti-counterfeit and industrial production process control system.

2. Features

Self-intellectual property

Max reader range 6m

Durable and cost effectives

All frequency band in the world available Compatible with EPC G2(ISO 18000-6C) or ISO18000-6B

Water and dust proof, anti-interference, can work under thunder and light,IP55 Splash Proof

Easy to install with enclosure up-and-down adjustable bracket

3. Area of Application

Automotive and Transportation

Supply Chain and Super Mart

Parking lot Management

School, Library

Contactless Payment

Logistic Management

Boarder and Access Control

Asset Tracking

Time&Attendance Management

Anti‐counterfeit

Farm and Animal Tracking

Club and Hospital

4. Specification

Functions

Operating Frequency

International(920~925MHz)

USA(902~928MHz)

Others(Customized Tag)

Protocol

ISO18000‐6C(EPCGEN2)

ISO18000‐6B

Frequency Hopping Mode

Fixed Frequency Band and FHSS Software Programmable

Antenna

8dBi circular polarize antenna (Integrated)

Output Power

0dBm~18dBm(Adjustable)

Read/Write Range

Max Read Range:6m, Max Write Range:3m Distance depends on Reader&Antenna output Power

Operating Mode

Master‐Slave Mode(Online Mode)

Time Scheduled Modes

Trigger Mode

Connecting Ports

Power

12V

Communication Port

RS‐232

Wiegand Interface:Wiegand26&Wiegand34Supported

RS‐485

10/100M Ethernet,GPRS.WIFI(for Customized Model only)

Trigger

1xTriggerLevelInput

General Purpose

2xGPIO

Operating Environment

Operation

-20℃~+60℃

Storage

-45℃~+85℃

Physical Parameter

Dimension

227mm×227mm×60mm

Weight

1.8Kg

Accessories

Power Supply

AC110~220V/DC+12V

Cables

Power Cable

RS232SerialCable

Brackets

Pole Mount Adapter

Software Pack(Optional)

API Software Development Kits complete with VB,C#Sample Program
